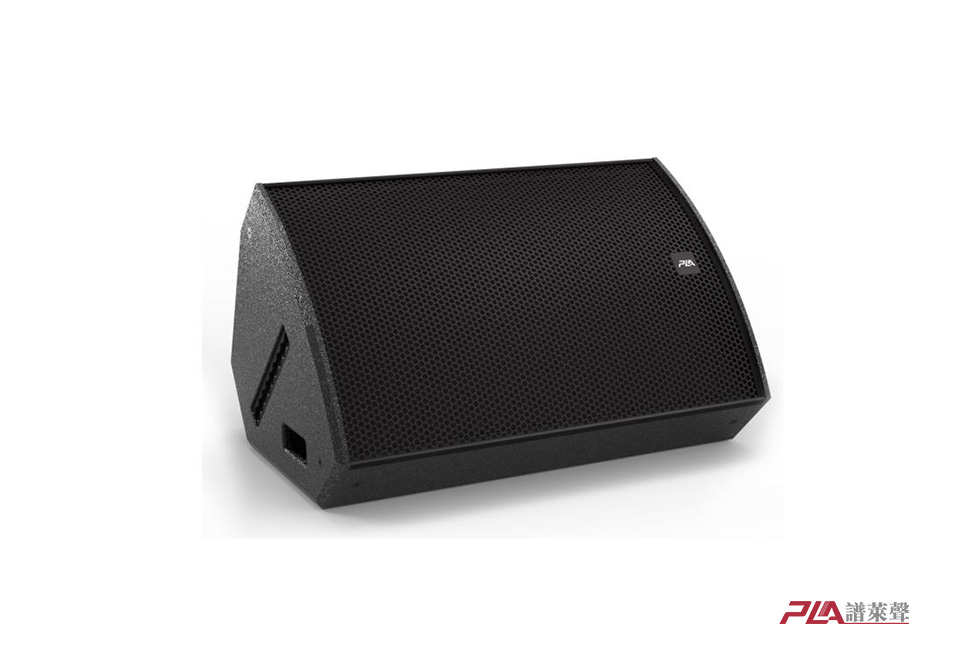

LM15

Features:

1. Frequency response special design to avoid auditory fatigueTouring performance,Theatre, Music hall 、Dual purpose return and main expansion

2. Asymmetrical rotatable horn

3. 3"Phase Correction HF compression driver

4. With PCT(Phase Coherent Technology) technology

5. Customized high-transient response woofer

Technical parameters:

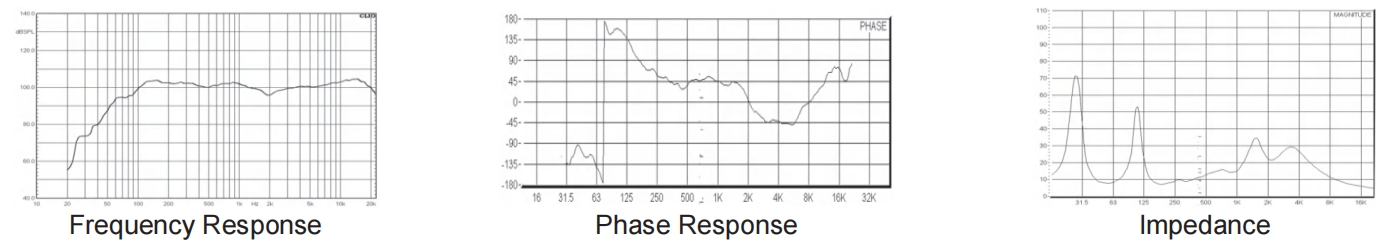

Frequency response: 60 Hz~18 kHz (± 3 dB) 50 Hz~20 kHz (-10 dB)

Nominal directivity (-6dB): 60°(H)x40°(V)constant directivity

Sensitivity (@ 1W/1m): 100 dB SPL

Power Rating: 450W

Impedance: 8 ohm

Maximum SPL: 127 dB/137 dB SPL peak

Transducers: LF:1x15" All Condition Woofer

                     HF:1x3"Phase Correction HF compression driver

Physical data:

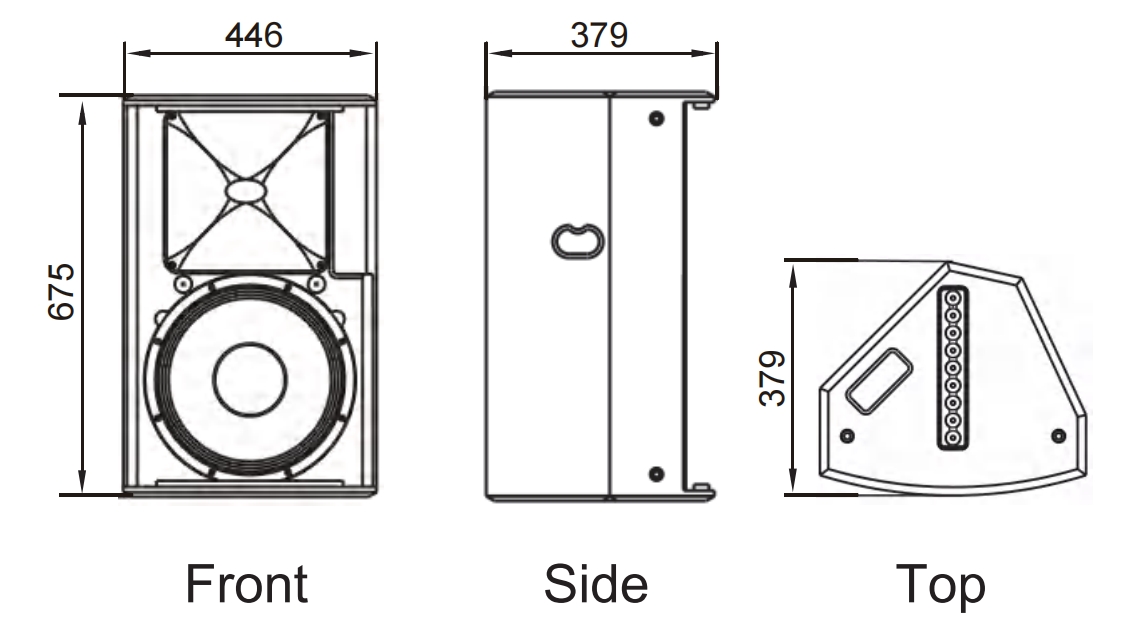

Dimensions: 446x379x675mm

Weight: 22 kg

Connector: WP4*2,NEUTRIK NL4MP*2

Speaker Cables: WP4:1-2+，NL4:1+1-

Material: Imported multi-plywood Environmentalwaterproof and anti-corrosion coatings

Finish：Black Polyurea paintings

Cover：Black epoxy mesh grille with acoustically reticulated cloth

Grille：DPR(Double Perforation Rate )technology design, in which the perforation rate of the middle and high transmission area is more than 90%,Greatly improves the sound transmission efficiency and reduces the acoustic.
