      LM12



      ApplicationsFeature
      Touring performanceFrequency response special design to avoid auditory fatigueTouring performance,Theatre, Music hall 、Dual purpose return and main expansion
      Theatre, Music hallAsymmetrical rotatable horn
      Dual purpose return and main expansion3"Phase Correction HF compression driver

      		With PCT(Phase Coherent Technology) technology



      Technical parameters

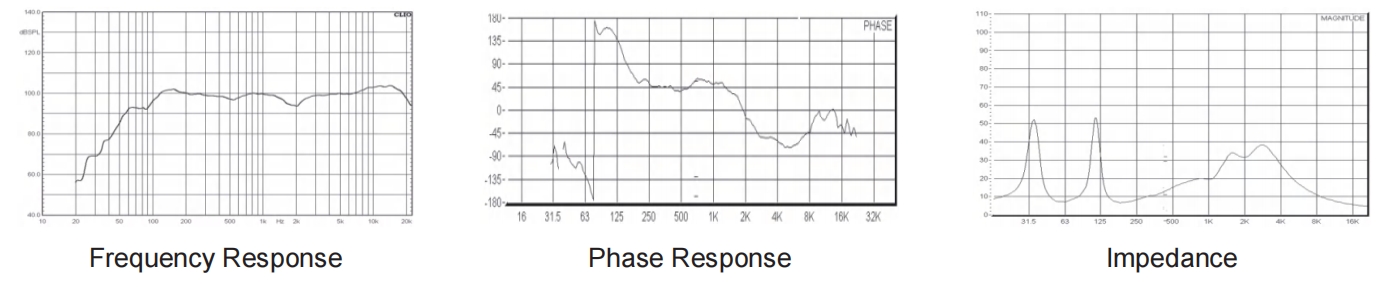

      Frequency response65 Hz-18 kHz(+3dB) 55 Hz-20 kHz(-10dB)
      Nominal directivity(-6dB)60°(H)×40°(V) Constant directivity
      Sensitivity (@1w/1m)98 dB SPL
      Power Rating400W
      Impedance8ohm
      Maximum SPL124dB/134dB SPL peak
      Transducers

      LF:1x12" All Condition Woofer

      HF:1x3"Phase Correction HF compression driver



      Physical data

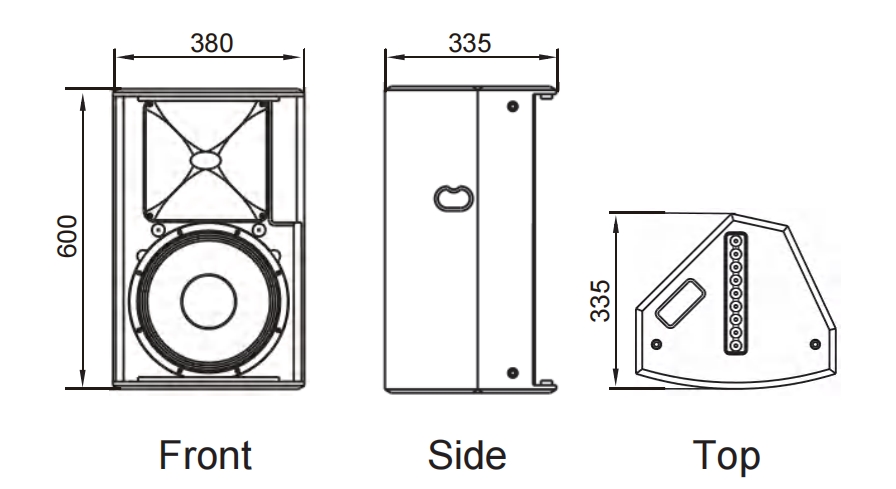

      Dimensions380x335x600mm
      Weight22Kg
      ConnectorsWP4*2,NEUTRIK NL4MP*2
      Speaker CablesWP4:1-2+,NL4:1+1-
      MaterialImported multi-plywood Environmentalwaterproof and anti-corrosion coatings
      FinshBlack Polyurea paintings
      CoverBlack epoxy mesh grille with acoustically reticulated cloth
      Grille

      DPR(Double Perforation Rate )technology design, in which the perforation rate of the middle and high transmission area is more than 90%,Greatly improves the sound transmission efficiency and reduces the acoustic.
