Dining bar

Meeting room

Classroom

Excellent vocal performance

1.5“voice coil full-range driver

Low frequency response extend to 100Hz

With FCT(Full Frequency Coherent Technology) technology

Technical parameters

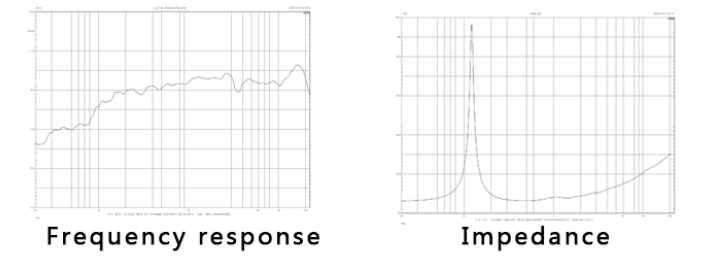

Frequency response

Nominal directivity(-6dB)

Sensitivity (@1w/1m)

Power Rating

Impedance

Maximum SPL

Transducers

110 Hz-18 kHz(±3 dB);

100 Hz-20 kHz(-10 dB)

80°（H）×80°（V）

94 dB SPL

130 W (AES)

8 ohm

115 dB/125 dB SPL peak

1 X 6" Full-range driver

Power lnput

Connectors

Speaker Cables

Phoenix plug

1+1-

Appearance

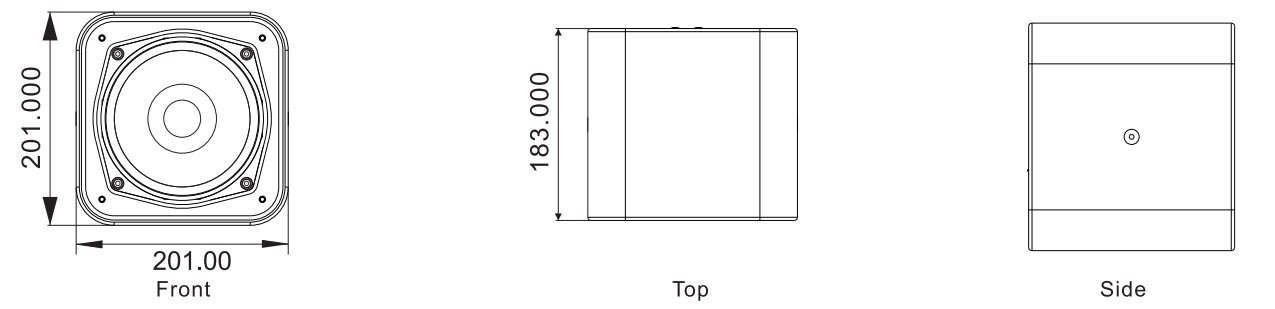

Dimensions

Weight

Material

Finsh

Grille

Installation

Mesh

201x183x201mm

3.5 kg

Imported multi-plywood Environmentalwaterproof and anti-corrosion coatings

Black polyurea paintings

Black Square Hole Stencil

Pole socket and for multiple flying points

DPR (Double perforation Rate) double perforation rate technology design, in which the perforation rate of the mid-high transmitting area is more than 90%, which greatly improves the sound transmission efficiency and reduces the acoustic crosstalk of the grille.
