Theater

multipurpose hall

Church,Karaoke

Front Zone and Delayed Fill-in

Excellent vocal performance

3"Phase Correction HF compression driver

Low frequency response extend to 50Hz

With CPS (Coaxial Point Source) technology

Technical parameters

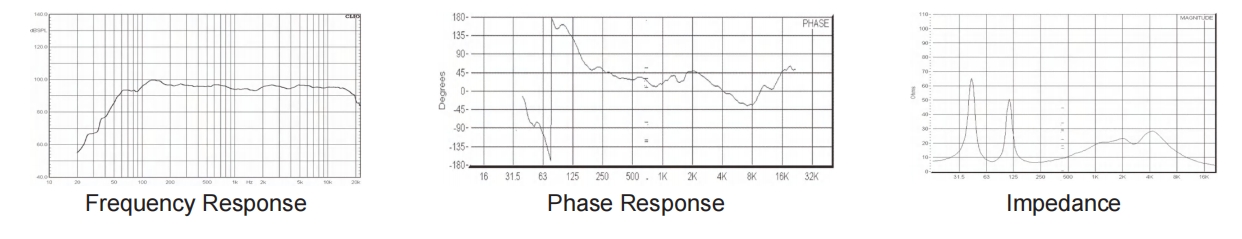

Frequency response

Nominal directivity(-6dB)

Sensitivity (@1w/1m)

Power Rating

Impedance

Maximum SPL

Transducers

65 Hz ～18 kHz (±3 dB )；50 Hz ～20 kHz (-10 dB )

80°(cone)

96 dB SPL

350W

8 ohm

121 dB/131 dB SPL peak

LF:1x10" All Condition Woofer

HF:1x3"Phase Correction HF compression driver

Power Input

Connectors

Speaker cables

NEUTRIK NL4MP*2

1+1-

Appearance

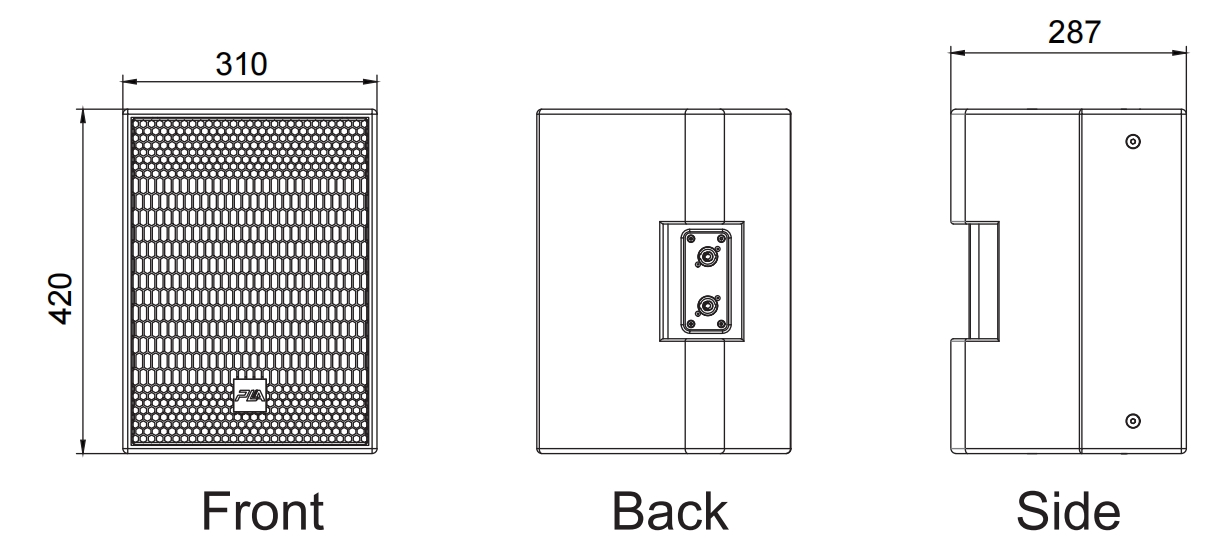

Dimensions

Weight

Material

Finish

Nstallati on

Grille

310x287x420mm

15.6kg

Imported multi-plywood Environmental waterproof and anti-corrosion coatings

Black Polyurea paintings

Pole socket and for multiple flying points

DPR(Double Perforation Rate )technology design, in which theperforation rate of the middle and high transmission area ismore than 90%,Greatly improves the sound transmissionefficiency and reduces the acoustic crosstalk of the surfacegrid.
