CL5

Applications	Feature
Conference system	With WCT (Wavefront Coupling Technology)
Medium size performance	With WCT (Wavefront Coupling Technology)

Technical parameters

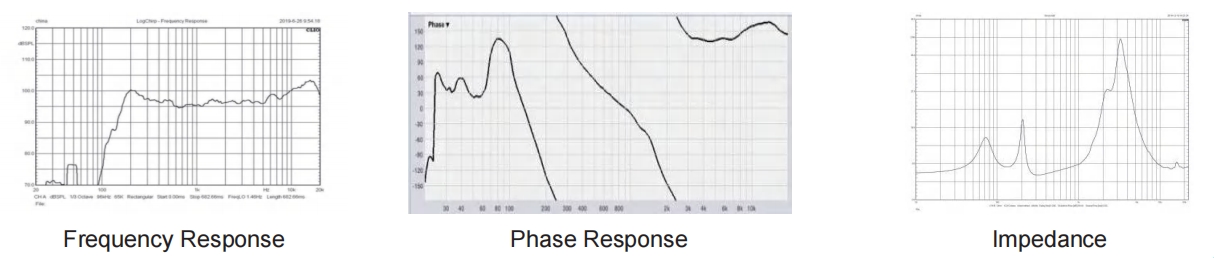

Frequency response	200 Hz ~ 18 kHz (± 3dB )：150 Hz ~ 20 kHz (-10dB )
Nominal Coverage(-6dB)	100°（H）×45°（V）（Up 15°，down 30°）
Sensitivity (@1w/1m)	101 dB SPL
Power Rating	520W
Impedance	8 ohm
Maximum SPL	128 dB/138 dB SPL peak
Transducers	LF:4x5"All Condition Woofer HF:1x1.75" Phase Correction

Physical data

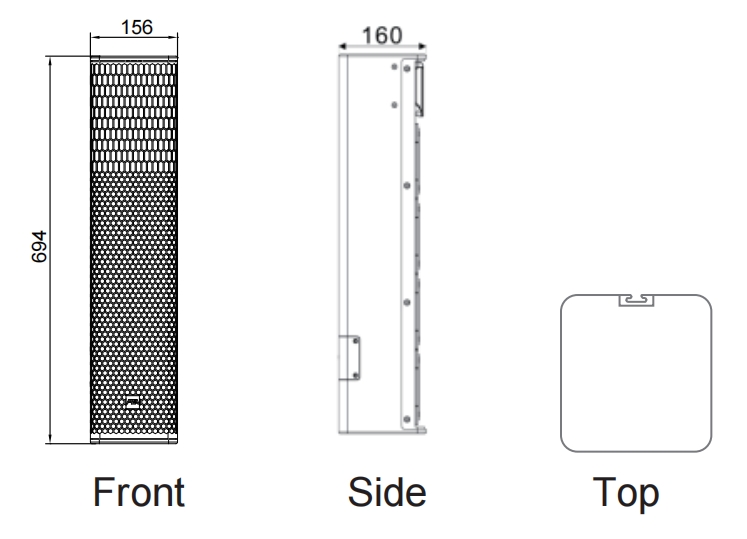

Dimensions	694×156×160mm
Weight	11kg
Material	NEUTRIKNL4 X 2
Speaker Cables	1+1-
Materials	Imported multi-plywood Environmental waterproof and anti corrosion coatings
Finsh	Black Polyurea paintings
Cover	Black epoxy mesh grille with acoustically reticulated cloth
Grille	DPR(Double Perforation Rate )technology design, in which theperforation rate of the middle and high transmission area ismore than 90%,Greatly improves the sound transmissionefficiency and reduces the acoustic crosstalk of the surfacegrid.
Rigging	0、-5°adjustable
