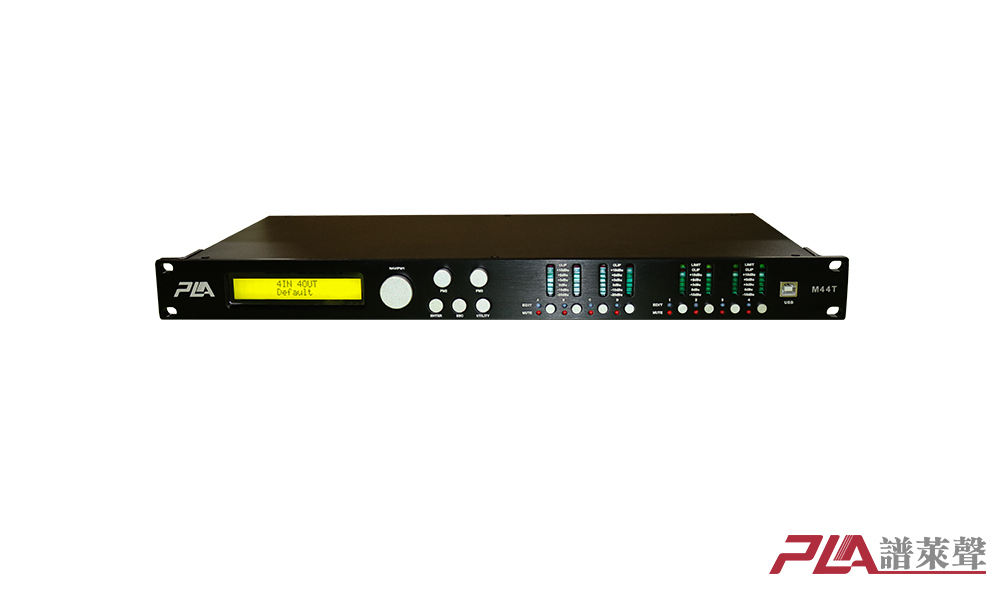

      M44T



      ★Input/ Output

      Input channel: M44T(4ch)

      Output channel: M44T(4ch)

      Input impedance:＞10KΩ

      Output impedance:50Ω

      Max.Level: +20dBu

      Mode:electronic balance

      ★Front Panel Figuration

      Monitor: Two line 20 character backlight LCD

      Electronical level: 7-bit LED

      The key: 8 mute button

      8 channel selection button

      3 menu button

      3 parameter control button

      ★Adjustable Parameters

      Master gain:-12 to 12dB, 0.1dB stepping

      Channel gain: -18 to 0 dB, 0.1dB stepping

      Phase：0°or 180°

      Delay: Each input/output Max.850ms

      EQ：Each input/output,5xEQ

      EQ types: PEQ, HP, LP, shelv,

      Aull pass, band pass, Trapper

      EQ gain：-15 to +15dB, 0.5dB stepping

      EQ bandwidth: 0.009 to 4.8 octaves

      (Q=0.3 to 20)

      ★Analog Audio

      Frequency response：+/- 1dB (20 to 20kHz)

      SNR：92dB typical (A weigkted)

      CMRR: > 40dB (20 to 10kHz)

      Crosstalk：< -100dB

      Distortion：0.005% (1kHz @0dBu)

      ★Connector

      Analog Audio input/output: 3pin XLR

      USB Connector: Type B

      Network connector:2×RJ45 connector

      (TCP/IP&M-LAN)

      Maximum Distance: CAT

      5e within 100 meters

      Digital audio output Connector: S/PDIF

      Power: Socket with IEC Standard

      ★Frequency separating filter

      Filter type：Butterworth, Bessel,

      Linkwitz Riley

      The slope: 6 to 48dB/oct，and user defined

      ★ RMS Limiter

      Threshold:-10 to +20dBu

      Compression ratio: 1:1 to 32:1

      Soft/hard turning point：0% to 100%

      Attack time: 5 to 200ms

      Release time: 0.1s to 3s

      ★Digital Audio

      DSP：24bits

      Sampling rate：48kHz

      ADC/DAC：24bits 192KHz high-resolutionchip

      Transmission delay：1.27ms

      ★General Specification

      Power：90-265 VAC (50 / 60Hz)

      Dimension：19"x1.75"x9"(483x44x229mm)

      Weight：10 lbs / 4.6 kg

      ★Signal input type

      Analog/digital

      ★Peak Limiter

      Threshold: -10 to +20dBu

      Attack time: 5 to 200ms

      Release time: 0.1s to 3s
