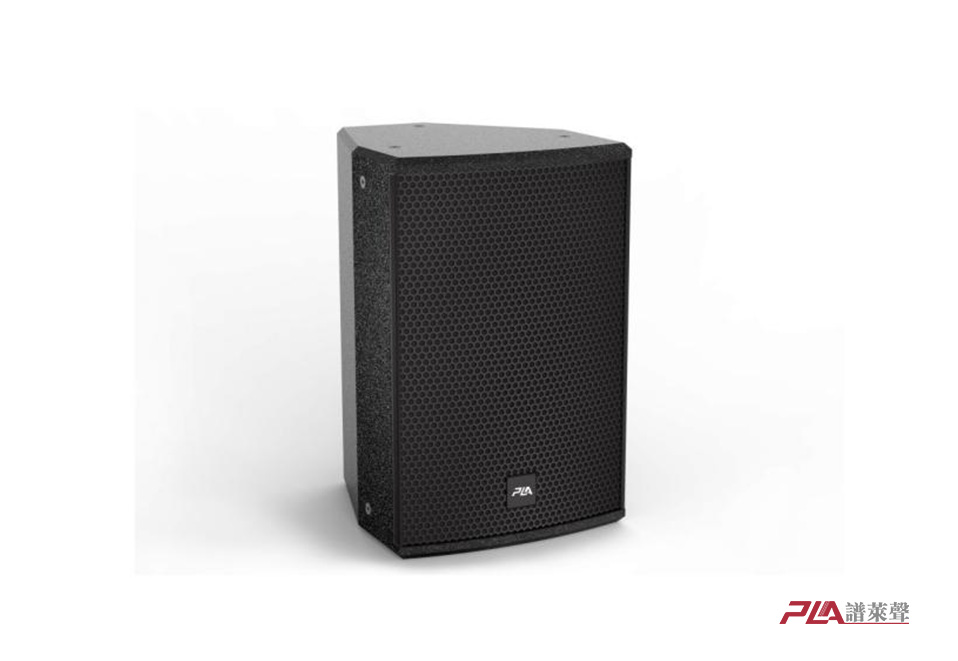

      PM10






      ApplicationsFeature
      Bar
      		Frequency response special design to avoid auditory fatigue
      TheatreRotatable and asymmetrical horn
      Stage Monitor 13x M8 rigging points

      		With PCT(Phase Coherent Technology) technology

      		Pole mount socket


      Technical parameters

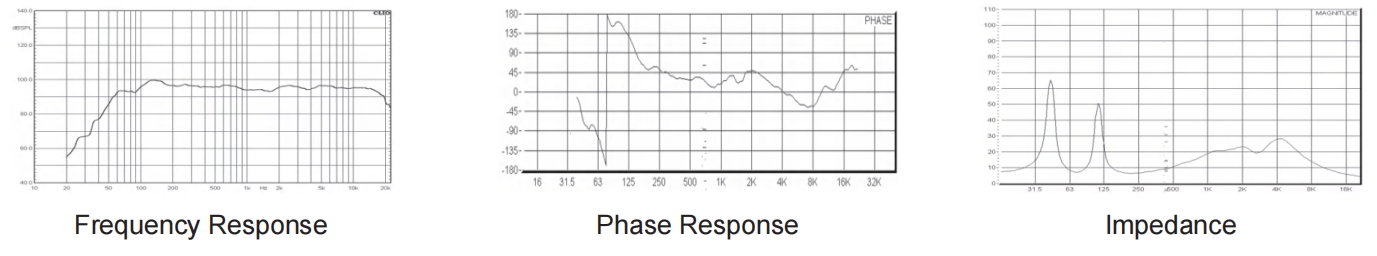

      Frequency response70 Hz-18 kHz(+3dB)  55 Hz-20 kHz(-10dB )
      Nominal Coverage(-6dB)100°(H)×55°(V) Constant directivity
      Sensitivity (@1w/1m)95dB SPL
      Power Rating350W
      Impedance8 ohm
      Maximum SPL120dB/130dB SPL peak
      Transducers

      LF:1x10" All Condition Woofer

      HF:1x1.75"Phase Correction HF compression driver


      Power lnput

      ConnectorsNEUTRIK NL4MP*2
      Speaker Cables1+1-


      Appearance

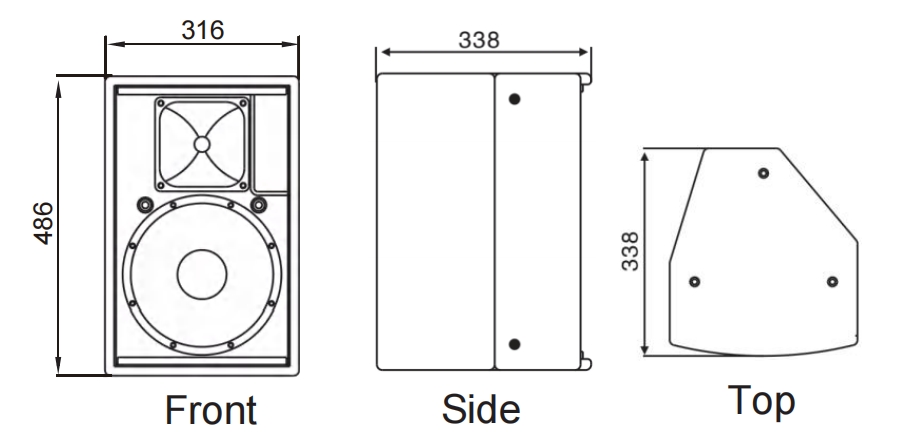

      Dimensions316x338x486mm
      Weight19Kg
      MaterialImported multi-plywood Environmentalwaterproof and anti-corrosion coatings
      FinshBlack polyurea paintings
      CoverBlack epoxy mesh grille with acoustically reticulated cloth
      GrilleDPR(Double Perforation Rate )technology design, in which the perforation rate of the middle and high transmission area is more than 90%,Greatly improves the sound transmission efficiency and reduces the acoustic.
